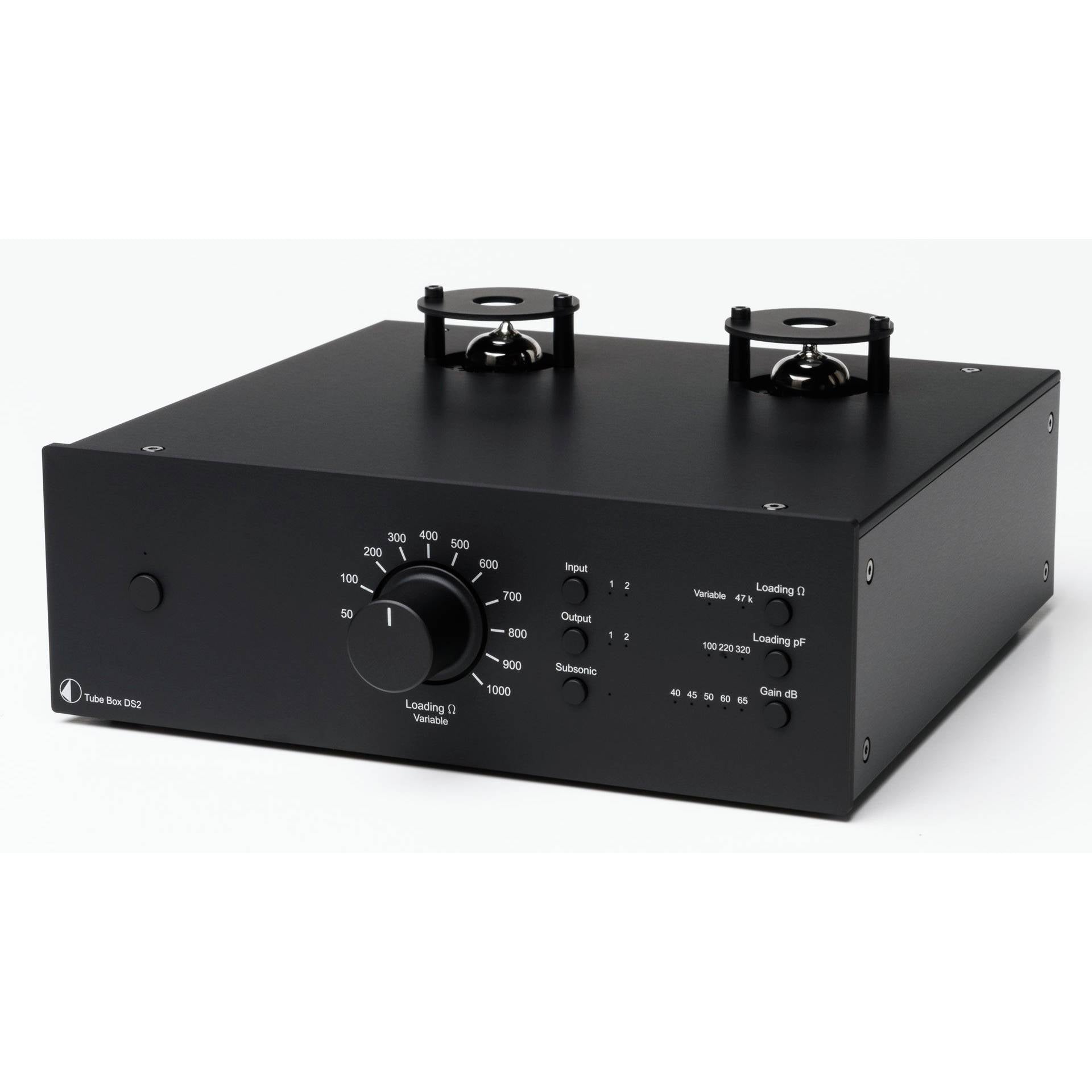

Pro-Ject Tube Box DS2

Name: Pro-Ject Tube Box DS2
Brand: Pro-Ject
SKU: 9120071651718
Price: 3399.0 RON
Availability: InStock

Preamplificator phono MM/MC

Pro-Ject Tube Box DS2

Preamplificator phono MM/MC

Form

3.399 lei / Bucata 3.995 lei

Întreabă când revine

Culoare Black

Ridicare gratuita din showroom

Optiuni plata in rate

6 rate · Card Avantaj
6 rate · Banca Transilvania
6 rate · Garanti Bank
12 rate · Raiffeisen Bank (in showroom)

Specificatii tehnice

Preamplificator phono cu etaj de iesire pe tuburi si circuit electronic gandit de Dr. Sykora pentru cele mai bune performante acustice.
Preamplificator de Doza cu etaj de iesire pe tuburi
Compatibil MM / MC
Tuburi 2 x ECC83 (12AX7)
Intrari: 2 X RCA (phono)
Iesiri: 2 X RCA
Impedanta Variabla 10-1000 Ohm, fixa: 47 kOhm
Gain 40 / 45 / 50 / 60 / 65 dB
Curbe de egalizare RIAA +/- 0.2dB/20Hz - 20kHz
THD < 0.04%

Cod produs: 9120071651718

30 de zile perioada de retur
Garantie 24 luni
Transport gratuit pentru comenzi peste 300 RON in Romania
Livrare prin curier sau ridicare din showroom Bucuresti

Documente utile

Manual de utilizare Pro-Ject Tube Box DS2Document publicat de producător Fișă de produs Pro-Ject Tube Box DS2Document publicat de producător

Coduri produs: 91200716517329120071651718

Coduri produs: 9120071651732 9120071651718

Tube Box DS2

Tube phono-preamplifier

Premium phono preamplifier with tube output and highend sound!

This precision tube phono pre-amplifier benefits from outstanding circuit technology from Dr. Sykora and uses ultimate components. Compatible with both MM and MC cartridges. It offers connection for two turntables plus two selectable line outputs and a continuously variable selection of input impedance for low output MC cartridges while playing a record! Other features include input capacitance for MM cartridges and switchable subsonic, that prevents your amplifier and speakers of ultra low rumble below 20Hz. All components including tube output and polypropylene capacitors are audiophile-grade and guarantee a breathtaking sound experience. A perfect upgrade for ambitious vinyl lovers!

Technical Specifications

Tube assembly: 2x ECC83 (12AX7)

Input impedance: variable 10-1000 Ohms, fix 47 kOhms

Capacitance: 100 / 220 / 320 pF

Gain MM / MC: 40 / 45 / 50 / 60 / 65 dB

Output voltage typically: 500 mV/1kHz at 5mV/1kHz (at 40dB)

Signal-to-noise ratio: 88dBA

THD: < 0,04%

RIAA curve accuracy: +/- 0,2dB/20Hz - 20kHz

Subsonic filter: 20Hz @ 18dB/octave

Input / Output: 2x RCA

Power supply: 18V/1000mA DC

Power consumption: max 490mA DC / < 0,5 watt standby

Dimensions W x H x D: 206 x 91 x 227 mm (aluminium)

Weight: (without power supply) 1500g (aluminium)
